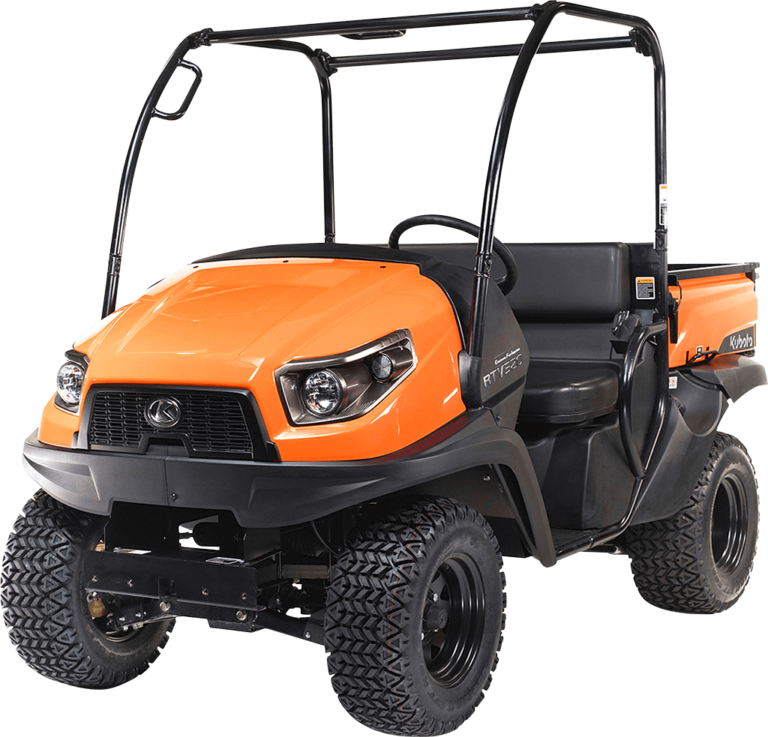

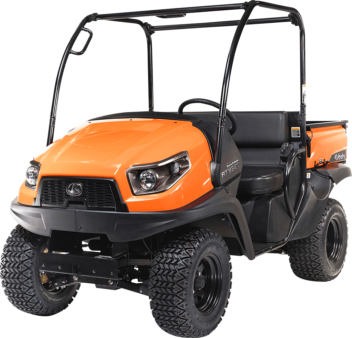

Nimble and mighty, the RTV520 is built for the farm or job site. It has the capability to get more done, in more areas, with ease and comfort. With easy operation and low maintenance, it’s the utility vehicle for tasks requiring a compact RTV, while still meeting the demands of heavy duty work with the perfect blend of performance and comfort.
Engine Model
Kubota GZ520
Fuel Type
Petrol
Cylinders
2
Engine Gross
17.4 hp
Displacement
514 cc
Fuel Tank Capacity
19.2 l
Rated Speed
3600 rpm
Transmission
Variable Hydro Transmission
Drive Method
Selectable 4WD
Brakes
Dry Disc
Differential Front
Limited-slip differential
Differential Rear
Hand operated with mechanical holder
Gear Selection
Hi-Lo Range, forward, neutral, reverse,
Steering
Rack and Pinion
Front Suspension
Independent, MacPherson strut type
Front Suspension Travel
105 mm
Rear Suspension
Semi independent, multi-link
Rear Suspension Travel
130 mm
Tubular Overhead Structure
50.8 mm
Seat Belts
2-point
Certification
SAE J2194 and OSHA 1928 ROPS
Front
24 × 9-12
Rear
24 × 11-12
Maximum High Speed
40 km/h
Length
2670 mm
Width
1390 mm
Height
1880 mm
Tread Front
1020 mm
Tread Rear
1040 mm
Wheelbase
1800 mm
Turning Radius
6.62 m
Ground Clearance Front
225 mm
Ground Clearance Rear
170 mm
Weight
625 kg
Towing Capacity
530 kg
Payload Capacity
424 kg
Material
Steel
Length
854 mm
Width
1033 mm
Depth
286 mm
Bed Height
873 mm
Volume
0.25 m3
Cargo Bed Capacity
200 kg
Dumping System
Manual
Engine
A 17.4 HP, 2-cylinder engine provides increased horsepower, with quiet and reliable muscle for any job. Kubota-built, the durable engine is liquid-cooled to improve efficiency and ensure consistent performance throughout the day.
Electronic Fuel Injection (EFI) makes starting the engine in cold-weather easier, and provides instant power with greater throttle control.
Transmission
The RTV520’s Variable Hydrostatic Transmission (VHT) provides exceptional performance on any terrain with smooth and powerful acceleration. Low-speed driving is made exceptional through smooth throttle control, great traction and increased manoeuvrability.
Featuring dynamic braking that increases driver safety and confidence with one-pedal operation when traveling downhill to make jobs that require travelling over undulating terrain easier.
Handling
Enjoy a smooth, and comfortable ride, thanks to the RTV520’s improved suspension. The 5-link rear suspension system offers improved handling, even through tough terrain. A reliable system which helps to prevent the vehicle bottoming out and improves the rider comfort.
The RTV520’s light steering system means less fatigue after a long day and greater productivity on the site. With a tight turning diameter of just 6.62m, the RTV520 can work in narrow sites where bigger utility vehicles can’t go.
Towing is made simple with a standard trailer hitch for greater versatility and an ability to attach trailers or pull-behind equipment. For those who refuse to compromise, the mighty RTV520 can tackle tough jobs with its 530 kg towing capacity.
Comfort
Enjoy a smooth, and comfortable ride, thanks to the RTV520’s improved suspension and soft seat. The stylish contoured seats have been redesigned with more padding material, to provide better comfort during long rides.
Equipped with a digital LCD featuring hour and fuel meters. The new combination meter is positioned on the dash for easy visibility while driving.
Customise
There’s plenty of choice when it comes to accessories. Cabin accessories such a plastic canopy, windscreen, additional work-lights, and winch are available. There’s also a glove box kit that mounts under the bonnet, providing extra storage for personal items. And you can travel in style by fitting a set of polished black alloy wheels to enhance the overall look of your RTV520.
